SmartPid BBQ EASY Color (+)

EASY and FUN



The Easy Color SmartPID BBQ is an all in one (controller + blow fan) solution perfect for beginners but also for professional than need a simple set and forget reliable device.  Because it’s portable compact size and battery power management, it’s great for your backyard, tailgates, picnics, camping or wherever your want to bring your BBQ.



Easy Color controller implement only PIT temperature control with same PID algorithm and accuracy of the PRO version but implement only some of advanced control features

Easy Color + model add also FOOD temperature controller either with wired NTC probe or wireless bluetooth probe



Is the only BBQ controller in the entry level range that provides wifi connectivity and remote control via smartphone/tablet/desktop web app

SmartPID EASY Color

Key Features

  • PIT and FOOD (model “color+”) control channels
  • NTC wired temperature probes and optional wireless Bluetooth FOOD probe
  • Multiple operation mode
    • manual (fan speed manual regulated)
    • auto (fan speed PID regulated)
  • PID-PWM continuous fan speed regulation in the range 0-100%
  • Tachometer fan speed indication
  • Configurable PIT and FOOD temperature threshold alarms
  • Cooking timer
  • LID Open automatic detection function
  • REST function
  • Power supply via wall adapter or USB powerbank
  • Wifi connection and remote control via dedicated universal web app
  • SW upgrade OTA via WIFI

Technical Specifications



Smartpid BBQ Easy Color has been professionally designed and engineered with unique techical characteristics

Dual channel PIT&FOOD (only color+) temperature control

Precise and stable PIT temperature control for perfect cooking

PID-PWM fan speed control algorithm to ensure maximum precision and stability

Support of NTC thermistor and wireless Bluetooth food probe (only color+)

4 wires (PWM speed control) 14 CFM

Dual power supply options: - 220V AC adapter - 5V DC USB bank for outdoor usage

Different low/hight PIT threshold configurable

WiFI connection for remote monitor and control

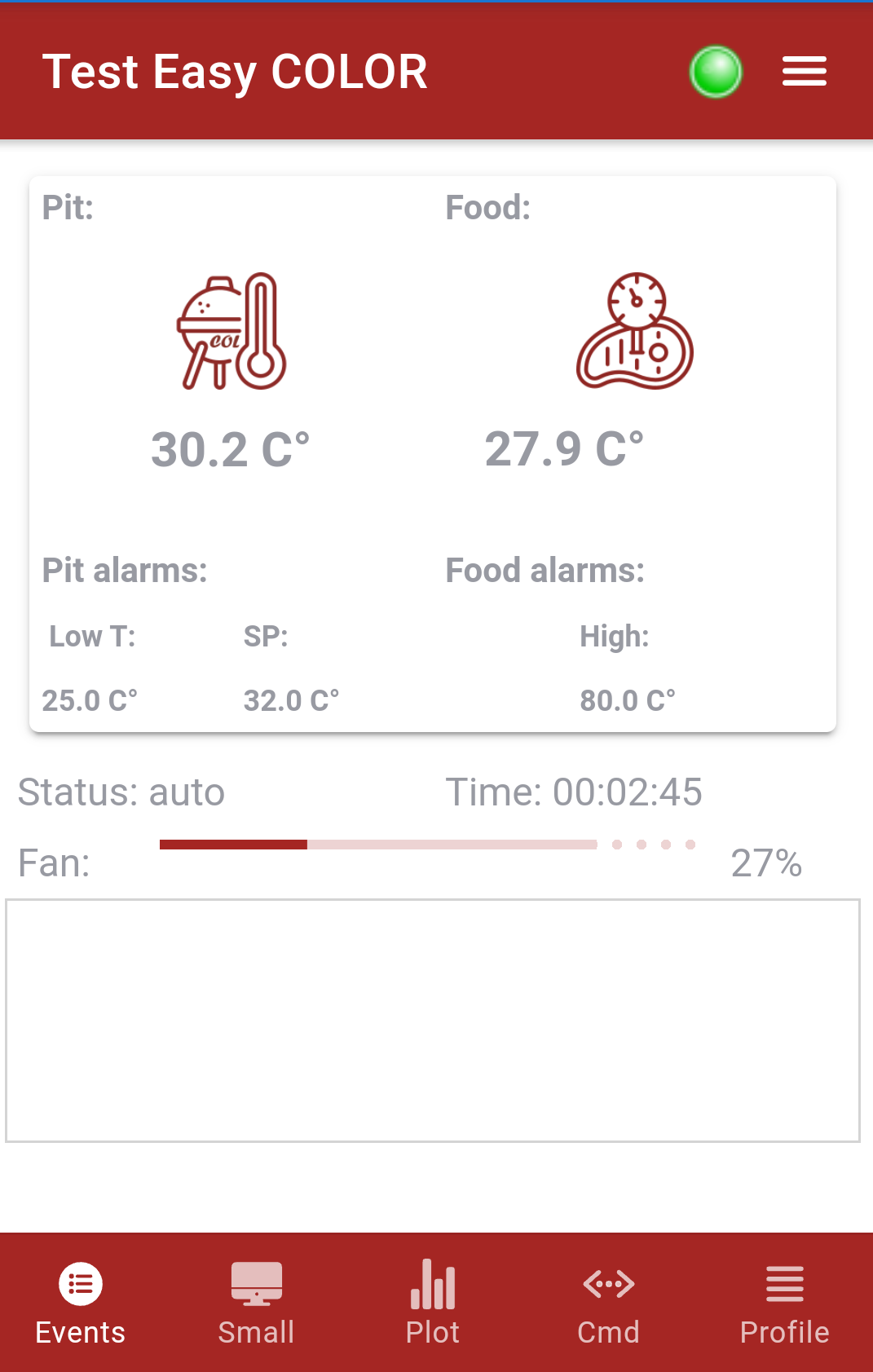

Dedicated universal web app for any browser desktop or mobile

SmartPID BBQ EASY Color supports a set of common HW features like  IPS color graphical display, regulation and temperature/set point/fan speed indication and SW update over the air

Remote Control



The possibility to connect smartPID to wifi and remote monitor and control your BBQ allows you to watch your football match or have a beer with your friends without the need to physical monitor your kettle. Alarms and status are notified to your smartphone in real time.

Some BBQ recipes require temperature adjustment and in case of slow cooking maybe this can be done along few hours. No problem since you can adjust any relevant parameter from remote via universal web application that runs in any browser.

SmarPID is connected in a easy and simple way to a cloud server and manage and provides this capabilities:

  • Periodic dynamic data notification (current PIT/FOOD* temp, set point, blow fan speed..)
  • Asynchronous events (set point reached, LID open, stall* etc..)
  • Advanced program configuration (differential cooking*)
  • Commands from the remote smartphone app (Fan start/stop ,set point modification, LID open.

(*) PRO and Color+ only

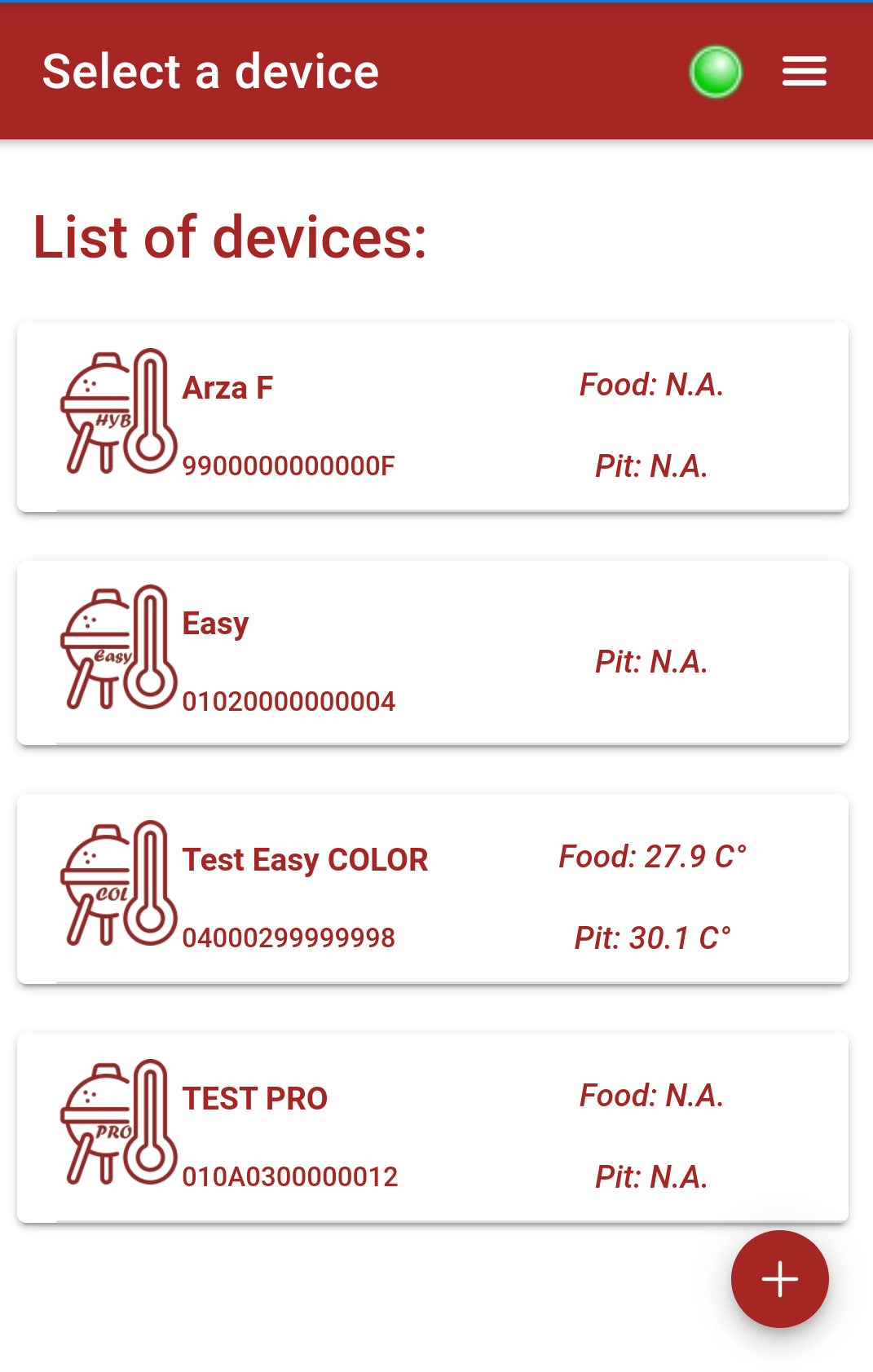

from the web app you can control more than one device and you can also export your cooking session data in CSV format for pos processing and analysis.

In the PRO version you can easily set up your advanced cooking program and download and execute in on click on the controller.
